Evolution Systems

Evolution Systems is the place where system administrators create and maintain a whole host of settings and preferences to facilitate the interface between MRI Evolution and the suite of Contractor apps.

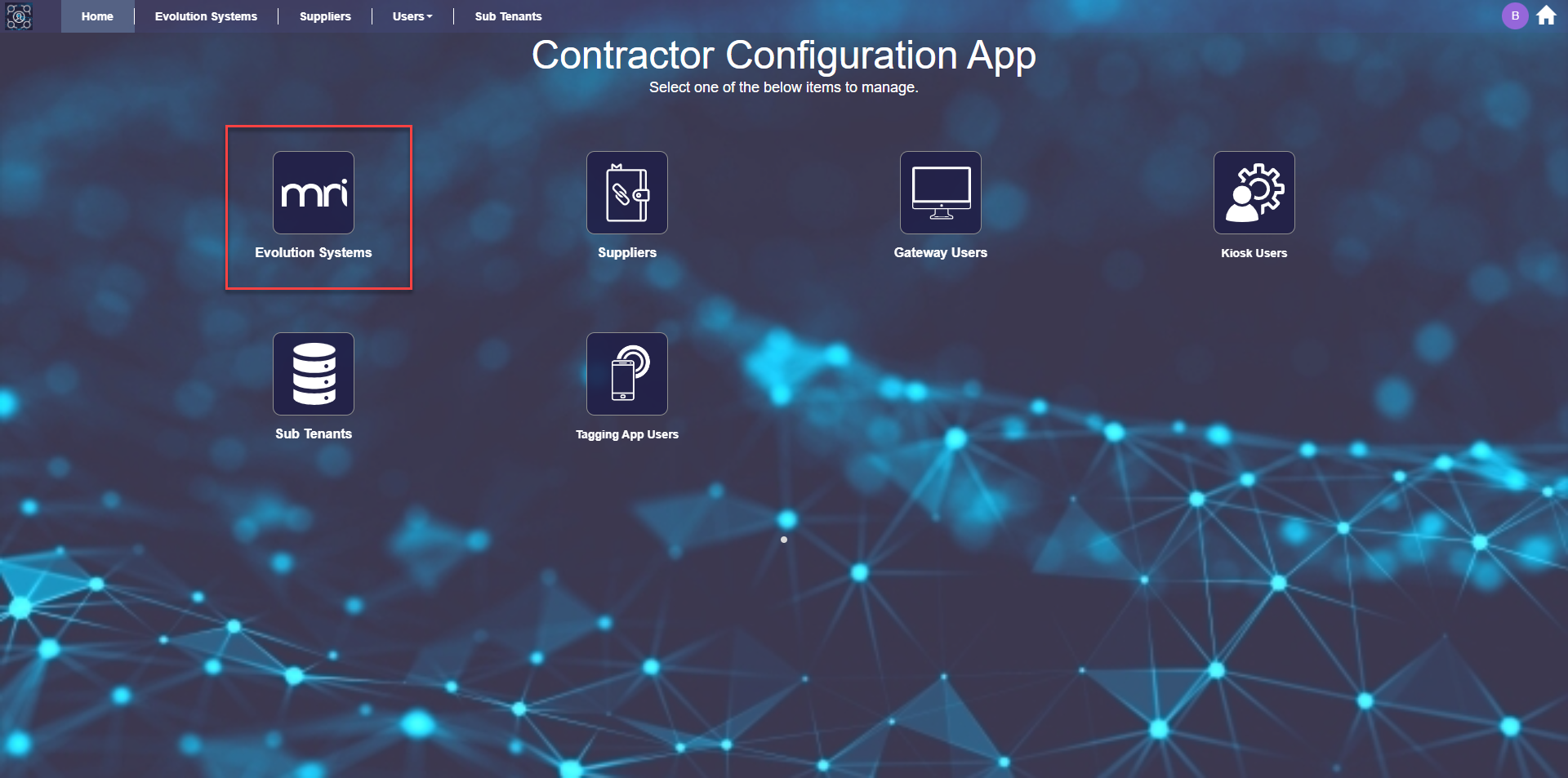

Click the Evolution Systems link, highlighted above, to open a grid of MRI Evolution instances. New instances can be created and existing instances can be maintained

Viewing and Maintaining Linked Evolution Systems

Existing MRI Evolution instance records can be opened by clicking the relevant row in the grid. The Evolution System settings page will be opened. The page contains the integration settings required to facilitate the interaction between the systems:

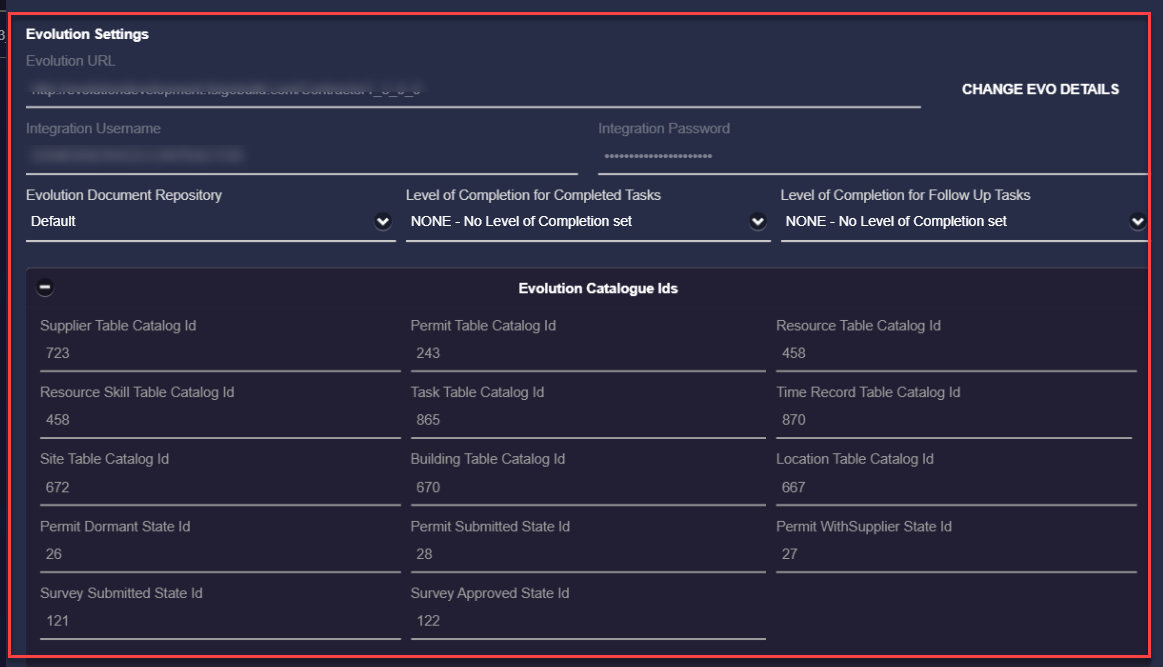

Evolution Settings Section

Clicking the button will change the page to a mode where certain fields can be updated, other fields can be updated at any time.

Evolution URL

Enter the URL of the MRI Evolution system that will be integrated with Contractor.

Integration Username and Password

Enter the MRI Evolution user credentials that will be used to integrate Contractor and MRI Evolution.

Evolution Document Repository

Select the MRI Evolution document repository from the dropdown. This is where the documents passed back from Contractor are to be stored, such as completed surveys.

Level of Completion for Completed Tasks - Available from version 1.1

Select from the dropdown the system default MRI Evolution Level Of Completion to be set for Tasks that are completed, in Contractor.

A Supplier Specific Level Of Completion for Completed Tasks can be defined to override the system default.

Level of Completion for Follow Up Tasks - Available from version 1.1

Select from the dropdown the system default MRI Evolution Level Of Completion to be set for Tasks that are marked as requiring a follow-up, in Contractor.

A Supplier Specific Level Of Completion for Follow Up Tasks can be defined to override the system default.

Level of Completion for Invoices submitted - Available from version 2.1.0

Select from the dropdown the system default MRI Evolution Level Of Completion to be set for Tasks that have an associated submitted Invoice.

Evolution Catalogue Ids

This section contains the MRI Evolution table catalogue entity Ids that are required for Contractor to retrieve and populate data in MRI Evolution. The values are a fetched by a workflow upon running a test connection.

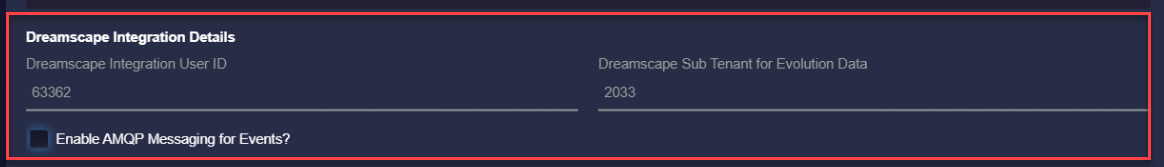

Dreamscape Integration Details Section

MRI Dreamscape Integration User Id

Enter the User Id of the MRI Dreamscape user that will be used to integrate Contractor and MRI Evolution.

MRI Dreamscape Sub Tenant for Evolution Data

Enter the MRI Dreamscape Sub Tenant Id to be used to integrate Contractor and MRI Evolution.

Enable AMQP Messaging for Events?

Check box to enable/disable using the Advanced Message Queuing Protocol (AMQP) middleware to process the Event messages between Contractor and MRI Evolution.

Creating A New Linked Evolution System

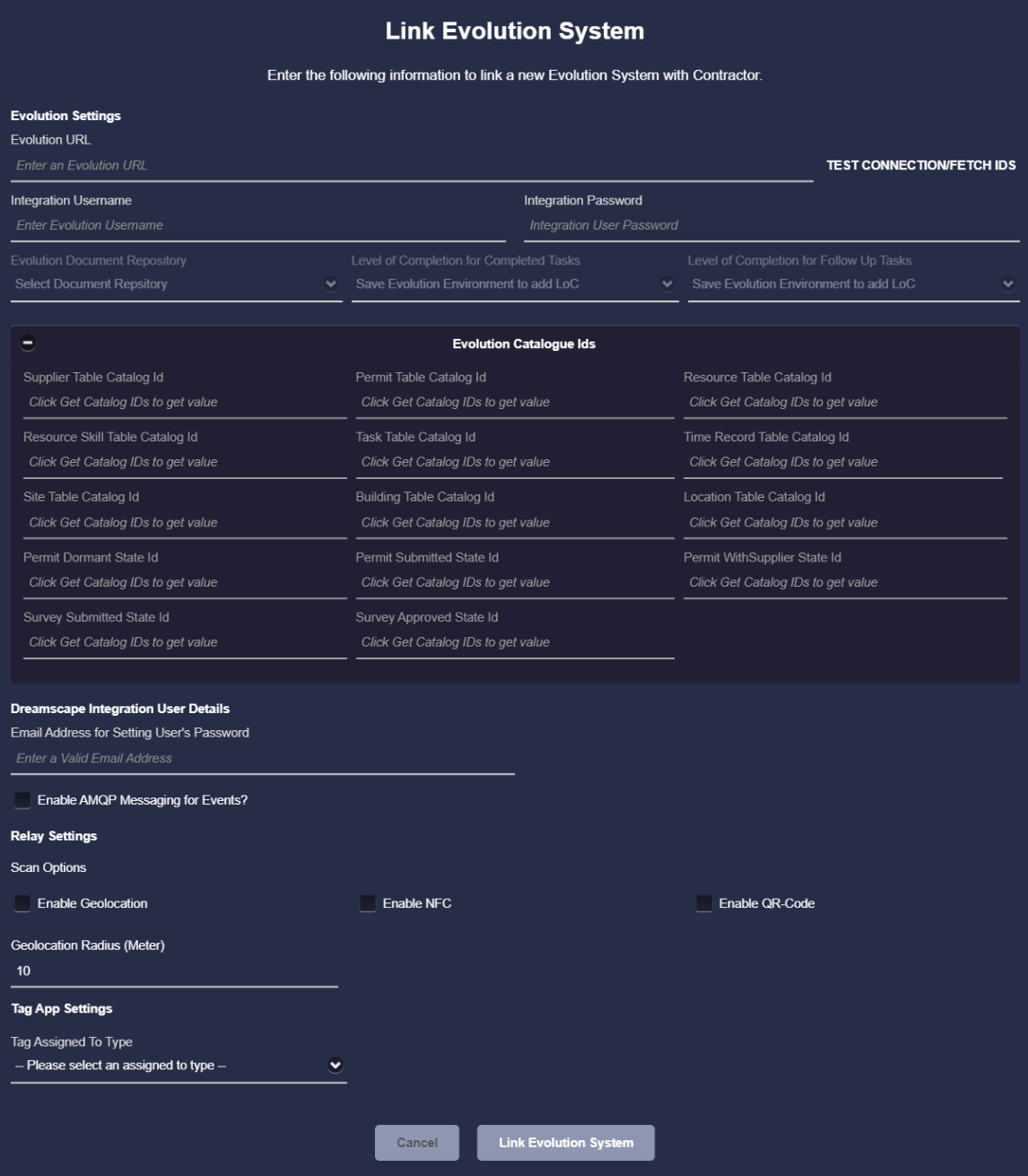

New MRI Evolution systems can be added by clicking the button from the grid page.

The fields described above for maintaining existing MRI Evolution instances are the same as for creating a new instance with the exception of the MRI Dreamscape Integration User Id field. When creating a new instance, the field is for entering an email address. This email address is used to generate the 'new user' emails in order to set a password and create an account that will be used as the Dreamscape Integration User.

Relay Settings

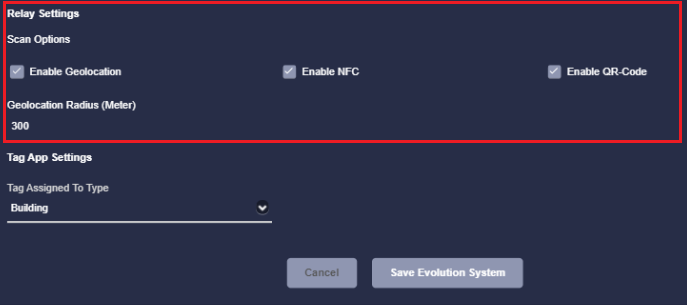

Near the bottom of the Evolution System settings page is a section called Relay Settings, highlighted below.

Scan Options - Available from version 1.2

The three Tag Scan Options check boxes are as follows:

  • Enable Geolocation
  • Enable NFC
  • Enable QR Code

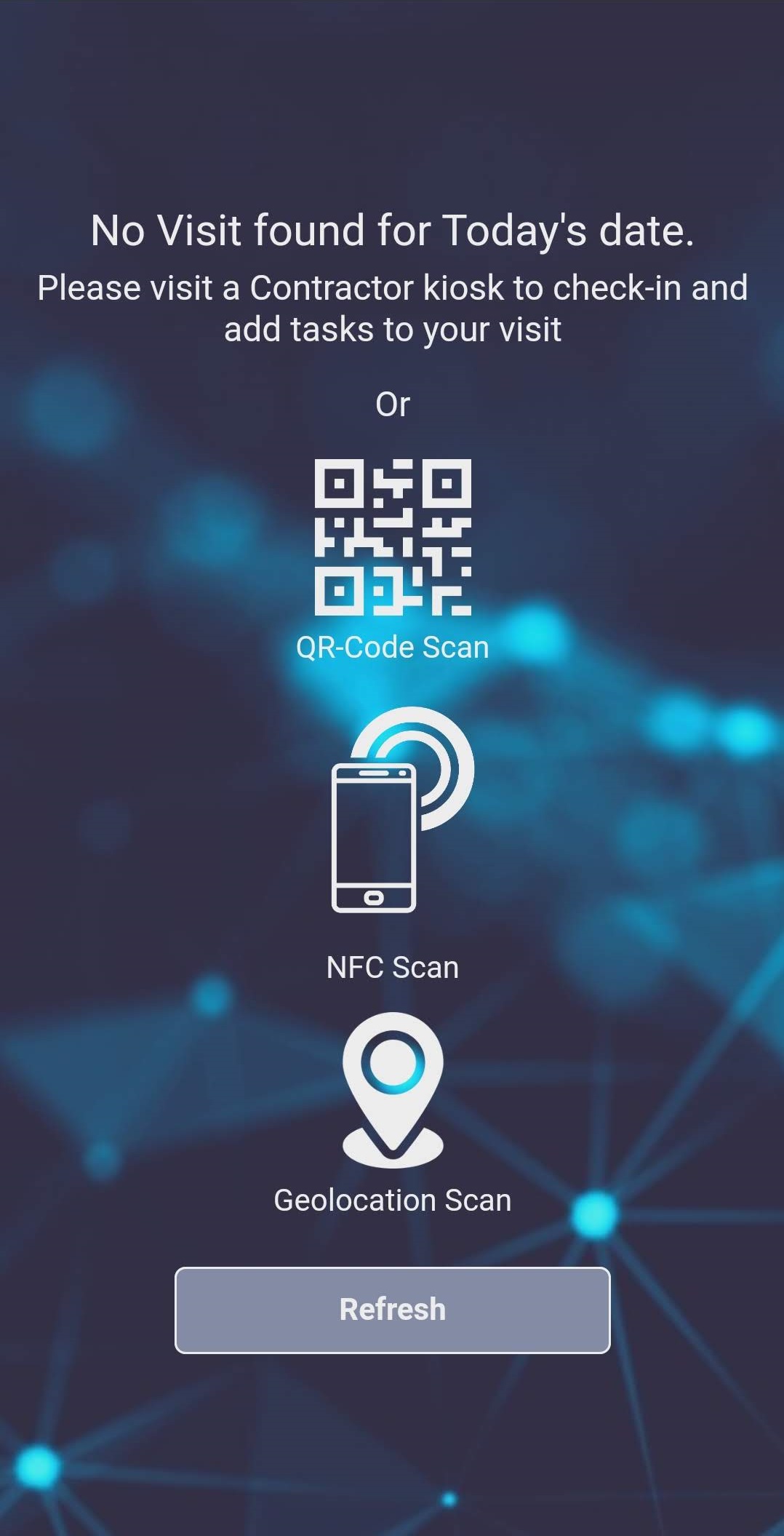

The check boxes control visibility of the scan icons in Relay. With all three checked, Relay would look like this:

The Scan Options not relevant to the types of Tags used by the client should be unchecked so the icons will not appear in the Relay app.

Note - Geolocation scans will only work for Building Tags, since they are the only entity where the latitude / longitude are stored in MRI Evolution

Geolocation Radius (Meter)

The Geolocation Radius option defines the distance in meters a user can be away from a Building's known latitude and longitude when they perform a Geolocation Scan in Relay.

If the user's Geolocation Scan position shows they are within the defined radius of a Building then the matching Building will be used to retrieve Tasks in Relay.

Tag App Settings

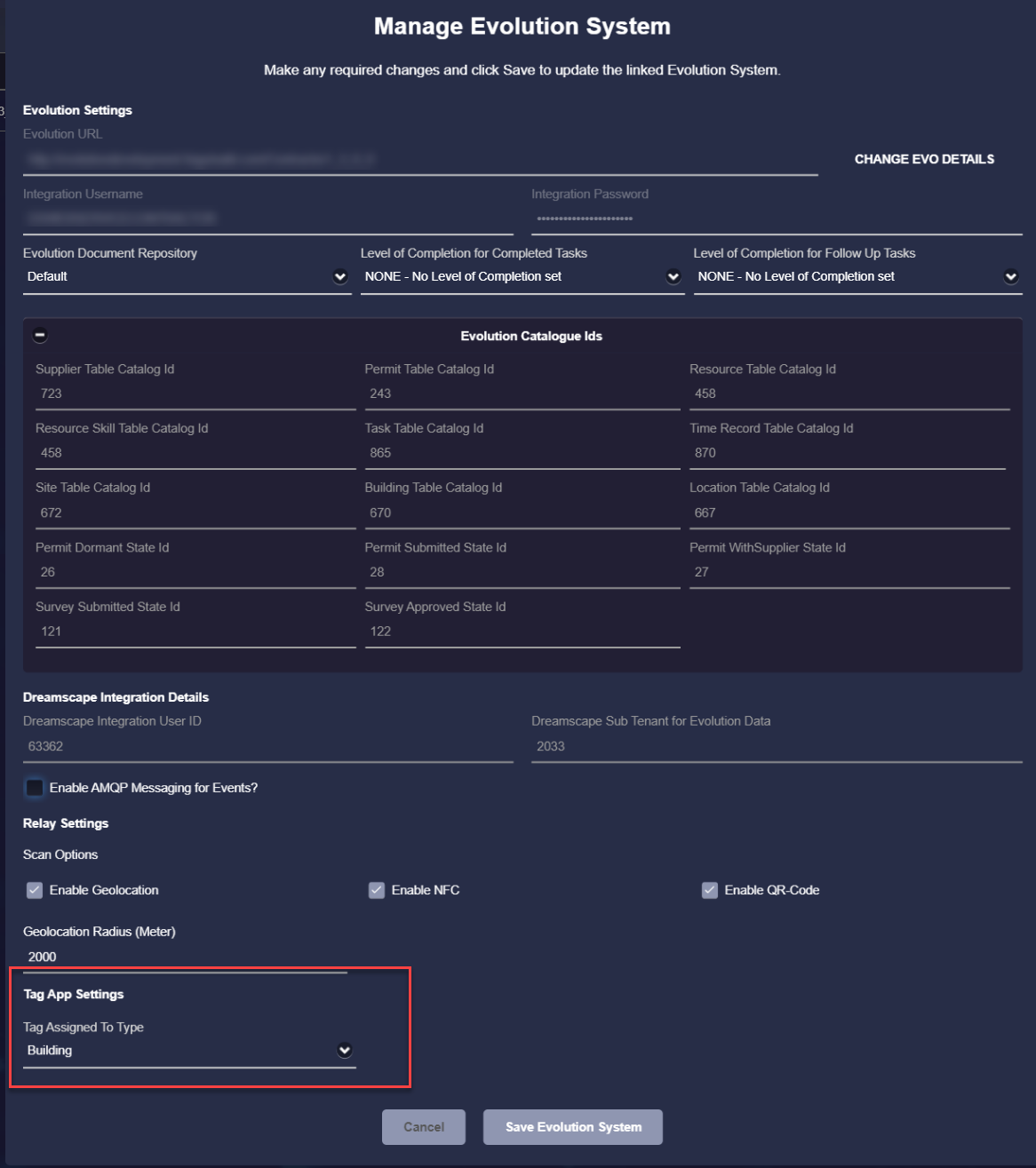

Near the bottom of the Evolution System settings page is a section called Tag App Settings, highlighted below.



Available from version 1.2

The only field in the section is called Tag Assigned To Type, it is a drop down containing options for Site, Building and Location.

The selection made here and the physical location of the Tags to be captured within the client's properties must consistent.

In other words, the actual Tags should be placed in either all Sites, all Buildings or all Locations and the Tag Assigned To Type drop down set to the same.

The choice made will define what filter options are displayed in the Tagging App, which MRI Evolution entities are displayed and ultimately linked to when capturing Tags:

  • Site
    • Site drop down displayed, containing Site records from the MRI Evolution instance
    • Site will be mandatory
  • Building
    • Site drop down displayed, containing Site records from the MRI Evolution instance
    • Building drop down, containing Site records from the MRI Evolution instance, filtered by the Selected Site
    • Building will be mandatory
  • Location

    • Site drop down displayed, containing Site records from the MRI Evolution instance

    • Building drop down, containing Site records from the MRI Evolution instance, filtered by the Selected Site
    • Location drop down, containing Location records from the MRI Evolution instance, filtered by the Selected Building
    • Location will be mandatory

Warning - If the Tag Assigned To Type drop down value is changed it will invalidate any Tags already captured and the process of capturing the Tags will have to be repeated.
